Shell and Tube Heat Exchanger – SolidWorks CAD Model

An accurate and professional Shell & Tube Heat Exchanger 3D model created in SolidWorks, perfect for engineering simulations, technical presentations, and industrial design applications.

📦 What’s Included:

• ✅ SolidWorks Assembly (.SLDASM) and Part Files (.SLDPRT)
• ✅ Exported Formats: .STEP, .IGES, .STL for universal compatibility
• ✅ Detailed 2D Technical Drawings (.PDF)
• ✅ High-Resolution Render Images

🛠️ Description (EN):

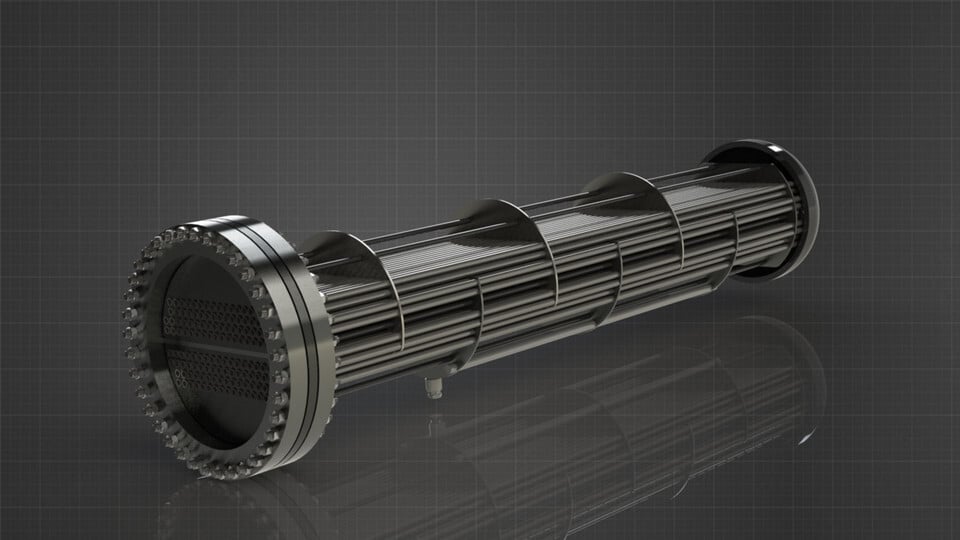

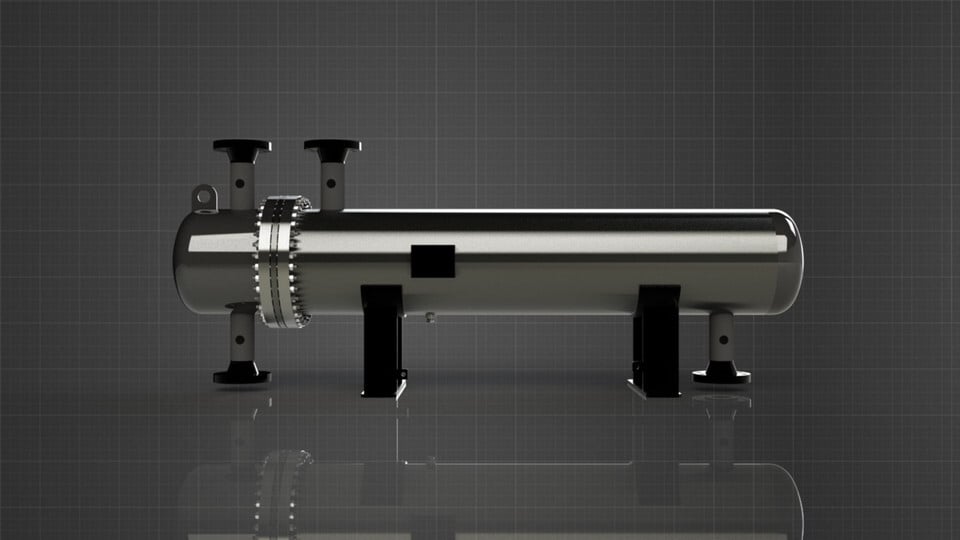

This CAD model features a horizontal shell and tube heat exchanger design, including detailed components such as:

• Outer shell
• Tube bundle
• Tube sheets
• Baffles (segmental or full)
• Inlet/Outlet nozzles

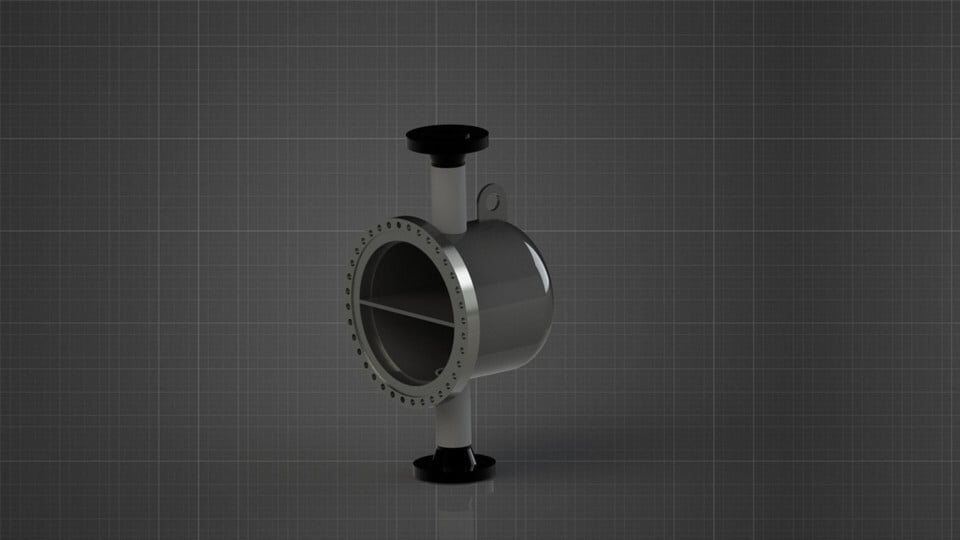

• End covers / bonnets

Widely used in petrochemical, marine, energy, and HVAC industries, this model is suitable for thermal, structural, or flow simulations (CFD/FEA).

🌟 Key Features:

• Realistic and clean industrial layout
• Optimized geometry for analysis
• Editable and scalable design
• Modular part structure for customization
• Accurate representation of standard components (TEMA-type layout)
